SALT FOG CHAMBERS: ISO 9227 vs ASTM B117
ISO 9227 vs. ASTM B117: different standards, same truth — the chamber matters
ISO 9227 and ASTM B117 are both foundational salt spray standards, but neither standard means much if the chamber cannot produce stable, repeatable, and defensible test conditions. Chamber construction, fog generation, temperature control, condensate management, collection uniformity, and exhaust handling are what separate valid corrosion data from noise.
ISO 9227 became the global framework for NSS, AASS, and CASS, while ASTM B117 remains the benchmark North American salt fog practice. Auto Technology chambers have supported both for decades because the real requirement is not just “run a fog” — it is maintain the specified environment correctly, consistently, and safely over long durations.
ASTM B117
The classic salt fog practice and long-standing North American reference for neutral salt spray exposure.
The real requirement
A chamber that actually achieves the specified fog, chemistry, temperature, collection, and discharge conditions.
ISO 9227
The international framework covering NSS, AASS, and CASS under one globally recognized standard.
Need a chamber, test services, calibration, or help selecting the right salt fog platform?
From National Salt Spray Practices to a Global Standard
Since the beginning of the Industrial Revolution, corrosion prevention has been a global priority. Iron ships, railroads, military equipment, aircraft, and later automobiles all forced industry to confront the same problem: rust could destroy value, reliability, and readiness long before a product reached the end of its intended life.
In 1939, ASTM introduced ASTM B117, the first formal salt fog method. Over time, other countries developed their own national frameworks, including British, German, Japanese, French, and Soviet standards. These gave structure to local industries, but they did not provide a single common international reference.
Postwar industry needed something broader. The International Organization for Standardization was formally established in 1947, and by the 1970s ISO began issuing corrosion test standards that laid the groundwork for international alignment. In 1990, those early documents were consolidated and replaced by the first unified edition of ISO 9227.
Today, ISO 9227 serves as the international salt spray reference in much the same way ASTM B117 has long served North America. But both standards depend on the same thing in practice: a chamber capable of creating the required corrosive atmosphere without contamination, instability, or poor fog distribution.
ISO 9227 vs. ASTM B117: The Practical Difference
ASTM B117
ASTM B117 is a long-established neutral salt fog practice with more explicit detail around traditional chamber operation and hardware expectations. It is often treated as the foundation document for basic salt spray qualification work.
ISO 9227
ISO 9227 is broader and more internationally oriented. It emphasizes the achievement of three required corrosive environments: NSS, AASS, and CASS.
What both standards really demand
Neither standard becomes meaningful unless the chamber can maintain the specified environment. Stable fog generation, inert construction, direct-spray avoidance, condensate control, specimen-zone collection, correct temperature, and reliable exhaust handling are what make results defensible.
Bottom line: ISO 9227 may be less prescriptive in how a chamber is built, but it is not less demanding in what the chamber must achieve.
Auto Technology M Series Size 22 chamber — a proven platform for ASTM B117 and ISO 9227 qualification programs worldwide.
ISO 9227 Unified Three Important Salt Spray Environments
One of ISO 9227’s major strengths is that it gathered multiple salt spray environments into a single international framework. Where ASTM separates related exposures across multiple standards, ISO 9227 gives laboratories one unified document covering:
- NSS — Neutral Salt Spray
- AASS — Acetic Acid Salt Spray
- CASS — Copper-accelerated Acetic Acid Salt Spray
NSS is the baseline neutral salt fog environment used for metals, coatings, anodic oxide coatings, conversion coatings, and organic coatings on metals.
AASS introduces acetic acid, making it especially relevant for decorative copper-nickel-chromium and nickel-chromium coatings, as well as certain aluminum finishes.
CASS builds on AASS with the addition of copper(II) chloride dihydrate at 0.26 g/L ± 0.02 g/L, with collected spray pH held between 3.1 and 3.3 at 25 °C ± 2 °C.
This is exactly where chamber quality becomes critical. NSS, AASS, and CASS are not just recipe changes. They impose different demands on construction materials, temperature capability, fog consistency, and long-duration chemical stability.

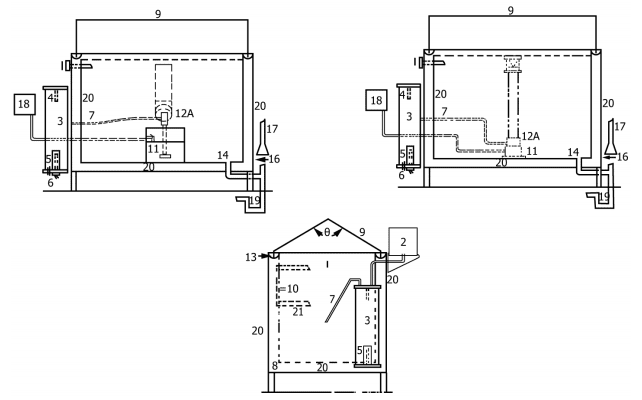

Chamber Requirements Are Not Optional Details
ISO 9227 does not walk the user through chamber construction step by step, but it absolutely sets non-negotiable performance and design requirements. The chamber must be built from materials that will not alter the corrosive atmosphere, the fog cannot be sprayed directly onto the specimens, and the chamber ceiling must prevent droplets from falling onto the panels.
Why this matters: if the cabinet materials contaminate the fog, if the lid geometry allows drips, or if the spray impinges directly on specimens, the chamber is not just inconvenient — it undermines the validity of the test.
What the chamber must do
- Resist corrosion without affecting the salt fog chemistry
- Prevent direct spray impingement on specimens
- Prevent condensate from dripping onto test panels
- Maintain the specified fog distribution across the exposure zone
- Support long-duration operation without unstable drift or contamination
Why Auto Technology chambers fit
Auto Technology Salt Fog & Humidity chambers are designed around exactly these requirements, using corrosion-resistant interiors, sloped covers, proven fog-distribution hardware, and the same kind of stable cabinet behavior laboratories depend on for defensible ASTM B117 and ISO 9227 work.
Fog Generation and Air Handling: The Chamber Has to Deliver the Result
Unlike ASTM B117, which is often associated with specific traditional hardware such as saturator towers, ISO 9227 focuses more on the required outcome: a fine, uniform fog generated from clean, oil-free, humidified air using high-purity water for both solution preparation and humidification.
That sounds simple until a lab has to run the chamber for weeks or months. In practice, fog stability depends on the quality of the atomization system, humidification method, air cleanliness, solution handling, nozzle reliability, and cabinet airflow behavior.
The chamber is the method. If the fog is coarse, uneven, unstable, contaminated, or drifting over time, you are not really running ISO 9227 or ASTM B117 the way the standard intends.
Auto Technology uses a proven bubble tower design to keep the air stream clean and fully humidified. That gives laboratories a time-tested way to generate stable fog not just for a short demonstration, but for the long continuous exposures real qualification programs require.
Temperature Control Is a Chamber Problem, Not Just a Setpoint
ISO 9227 requires the exposure zone to be maintained at:
| Environment | Exposure Zone Temperature |
|---|---|
| NSS and AASS | 35 ± 2 °C |
| CASS | 50 ± 2 °C |
ISO 9227 does not tell you what heating architecture to use. That leaves the real challenge where it belongs: on the chamber manufacturer. The chamber has to reach and hold the setpoint without unstable gradients, drift, overshoot, or weak recovery during long exposures.
Auto Technology’s answer: water-jacket heating has been used successfully for more than 75 years because it remains one of the most stable and uniform ways to control the salt fog exposure zone. With the proper high-temperature package, the same platform can reliably support CASS and other elevated-temperature applications.
Collection Confirms Whether the Chamber Is Really Uniform
Spray homogeneity is not assumed. It is checked using collection funnels placed in the specimen zone. During testing, at least two collectors must be placed in the exposure space, and for cabinet verification ISO 9227 requires at least one collector per 400 × 400 mm area of floor space.
That means collection performance is not just a paperwork item — it is a direct check on how well the chamber is distributing fog throughout the exposure zone. Poor collection consistency usually points back to chamber design, nozzle behavior, loading problems, or unstable cabinet conditions.
If the chamber cannot produce uniform collection, it is not producing a trustworthy salt spray environment.
Environmental Discharge Matters Too
ISO 9227 also recognizes that laboratories need a responsible way to manage fog and waste after the test. The standard gives preference to equipment that can properly deal with fog before it is released from the building and dilute salt solution before it is discharged to the drainage system.
This is one more example of why chamber selection matters. A chamber is not just a box that makes fog. It is part of a complete operating system that must support compliance, safety, environmental handling, and long-duration usability.
Auto Technology support options include ventilation and purge approaches as well as scrubber / jet exhaust dilution systems designed to help laboratories manage exhaust responsibly while protecting operators and facilities.
Need to Buy a Chamber for ISO 9227 or ASTM B117?
If you need to run ASTM B117 or ISO 9227, the right starting point is a salt spray chamber that can reliably achieve the required environment and support the add-ons your program may need.
Typical chamber paths
- Salt Fog Chamber (SFC) — best starting point for ASTM B117 and ISO 9227
- M Series steel chambers — proven worldwide for decades in B117 and 9227 qualification work
- Add-ons available — high-temperature capability, SO₂ dosing, evaporative humidity, cyclic testing, and more
- Cyclic Corrosion Chamber (CCT) — for more advanced cyclic corrosion methods
- Multi-Purpose Fog (MPF) — for programs that need capability between basic salt spray and more advanced cyclic work
Not one-size-fits-all
Corrosion testing is not one-size-fits-all. Chamber size, temperature capability, exhaust handling, specimen type, solution strategy, future standards, and lab workflow all matter. Auto Technology specializes in matching the chamber to the real application.
Tell us your standard, specimen size, chamber capacity, exhaust setup, and whether you also need CASS, SO₂, humidity, or cyclic capability.
Don’t Want to Buy a Chamber? We Can Run the Testing.
If you need salt spray testing but do not want to purchase equipment, Auto Technology’s test lab can support your program with corrosion testing services and chamber rental options.
When test services make sense
- Immediate project demand
- Low annual sample volume
- Qualification work before equipment purchase
- Independent or third-party testing needs
- Overflow testing for existing lab programs
Need more than testing? We also support calibration and service work, including support for chambers not originally built by Auto Technology.
Tell us your standard, material or coating, duration, sample quantity, and reporting needs.
Frequently Asked Questions
Where do I buy, and how do I know which chamber is right for me?
Our Salt Fog Chamber (SFC) is the best choice if you need to run ASTM B117 or ISO 9227. A wide range of add-ons are available, including high-temperature capability, SO₂ dosing, evaporative humidity, and cyclic testing. If you are focused on advanced cyclic corrosion testing, our Cyclic Corrosion Chamber (CCT) may be the better fit. If your needs fall in between, the Multi-Purpose Fog (MPF) chamber may be the right solution.
Where do I get the salt solution?
Auto Technology supplies everything you need, from high-purity salt to premixed solutions. Contact us or visit our store to discuss the right solution for your program.
I do not want to buy a chamber but need testing. What are my options?
Our ATC Test Lab offers corrosion testing services as well as chamber rental options. We can help define the right path based on your timeline, sample volume, and the standard you need to run.
I have a chamber that needs calibration. What if it is not made by Auto Technology?
We calibrate both our own chambers and chambers built by other manufacturers. Contact us to discuss the chamber type, service needs, and site requirements.
I have a chamber that needs service. Can you help?
Yes. We service Auto Technology chambers and support legacy models. If you are dealing with performance drift, maintenance issues, or need help restoring reliable operation, contact us.
