Precision Salt Fog & Humidity Test Chambers — Built to the Standards That Drive Industry

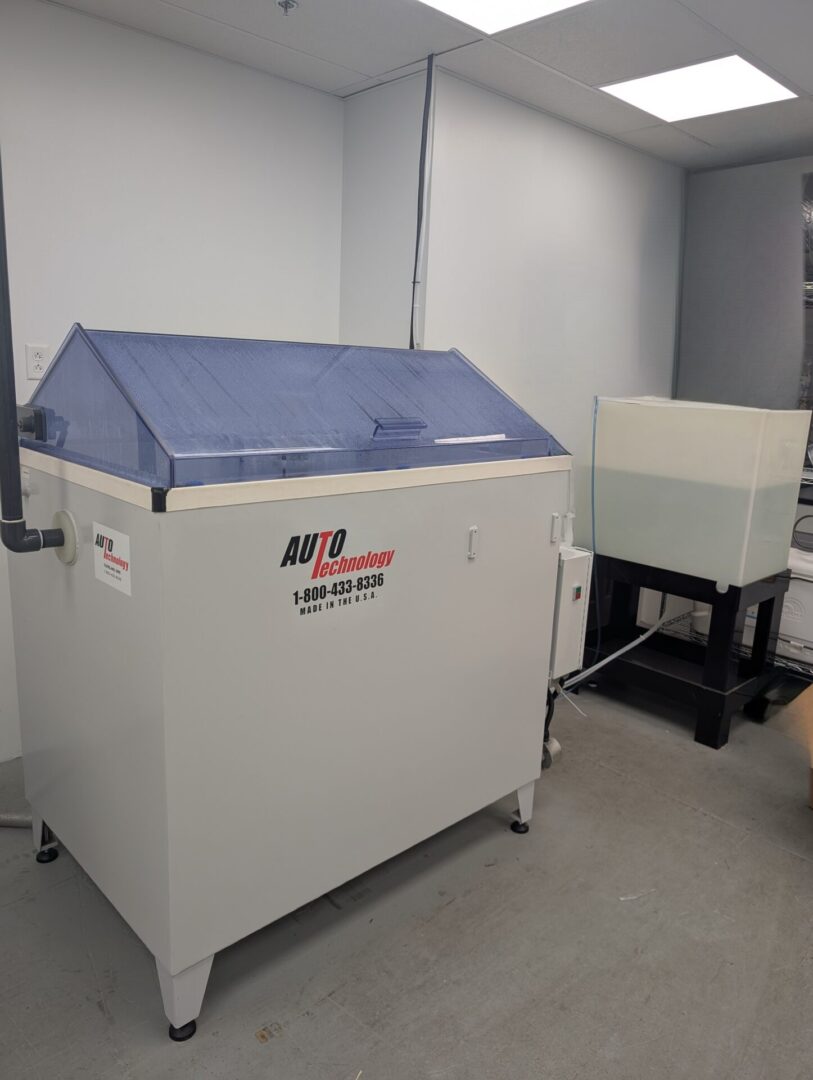

Engineered for accuracy and repeatability, the Auto Technology SFC Salt Fog & Humidity Test Chamber delivers dependable performance for ASTM B117, ISO 9227, and MIL-STD 810 corrosion standards. Designed for continuous operation and precise environmental control, the SFC reproduces salt spray and humidity exposure conditions to evaluate coatings, components, and materials with exceptional consistency. Built in the USA and trusted by laboratories worldwide, it provides the proven reliability and uniformity demanded by standards-driven testing programs.
Whether you’re validating coatings, fasteners, or components, the Auto Technology Salt Fog & Humidity Chamber provides repeatable, traceable, and certifiable test conditions — the same chambers we use in our own A2LA-accredited corrosion test lab.
Full Range of Configurations
Available in 19 to 194 ft³ capacities — plus custom walk-in chambers — with options for:

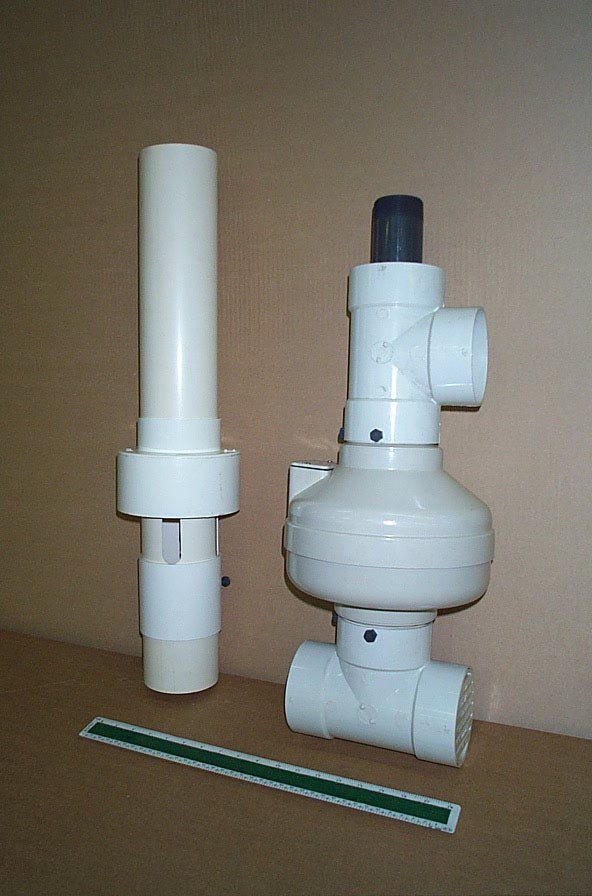

- Recirculating Scrubber (Jet Exhaust) and Power Vent Systems
- SO₂ Adder Package for Kesternich Testing
- High-Temperature Package (up to 50 °C / 122 °F continuous)
- Humidity Pipe and Wet-Bottom Drain Assemblies
- Cycling Controls Package
- Data Logging and Digital Recorder Integration
- Automatic Air-Lift Covers and Safety Interlocks
- 55-Gallon Solution Mixing and Auto-Fill Reservoirs
- Automatic Shut-Down Timer Switch
- Low- and High-Profile Configurations
- Optional Conformance Packages
Designed and built in the USA for full compliance with ASTM B117, ISO 9227, MIL-STD-810 509.7, and related standards
- The same systems operated in ATC’s A2LA-accredited corrosion test lab
- Compatible with ATC calibration, verification, and proficiency testing programs
- Offered in low- and high-profile configurations for ergonomic and lab layout flexibility
Common Applications

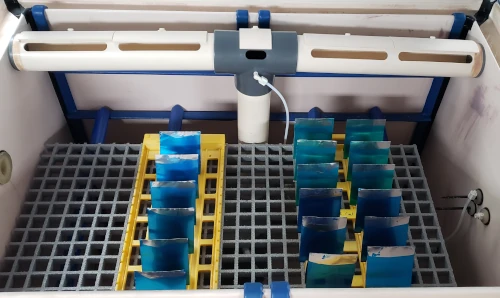

- Paint, coating, and fastener validation to ASTM B117 and ISO 9227

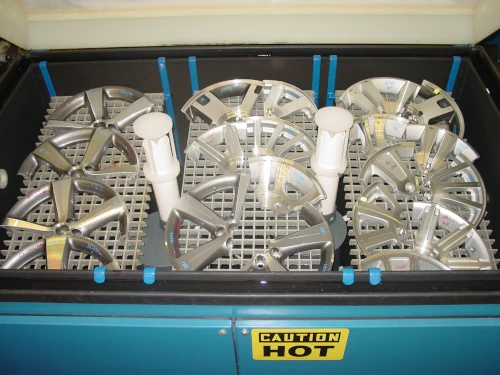

- Automotive, aerospace, and marine corrosion testing
- Metal plating, conversion coating, and materials research
- OEM and Tier-1 supplier qualification programs
- Long-term humidity and salt spray benchmarking
Product Highlights
| Feature | Benefit |
|---|---|
| Water-Jacket Heating System | ASTM B117-specified indirect heating delivers precise, stable temperatures and uniform fog distribution |

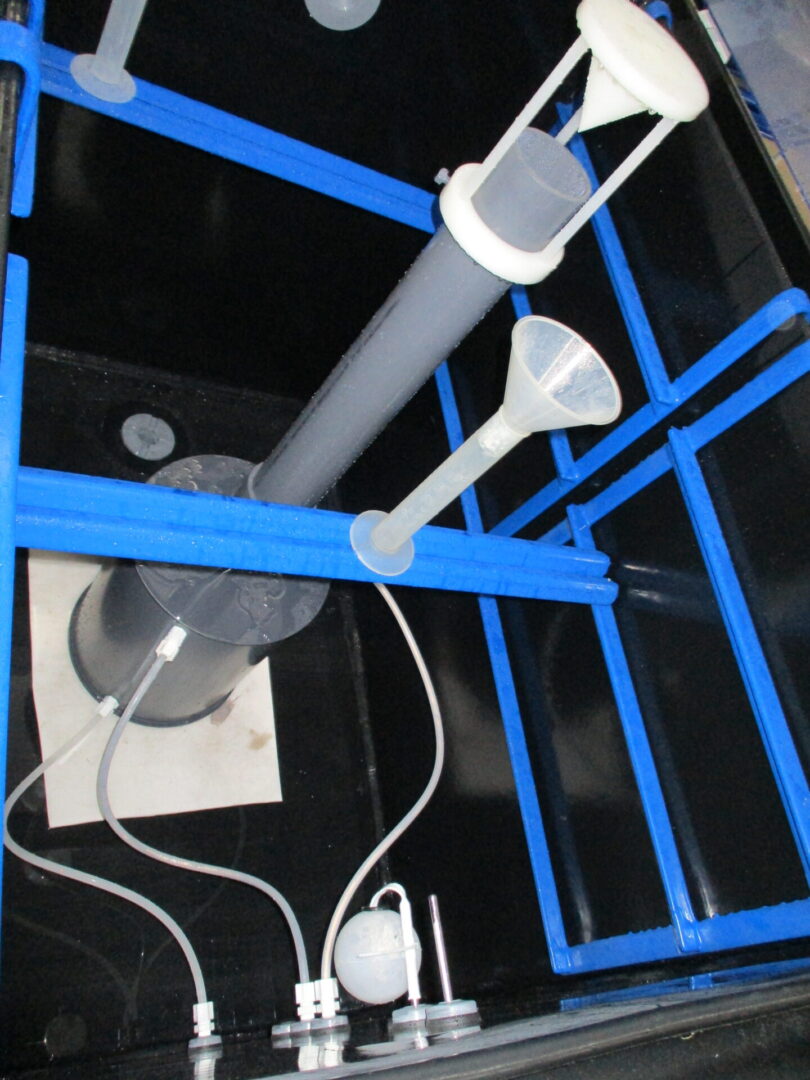

| Bubble Tower Humidification | Preheats and saturates atomizing air for consistent fog density and droplet size |

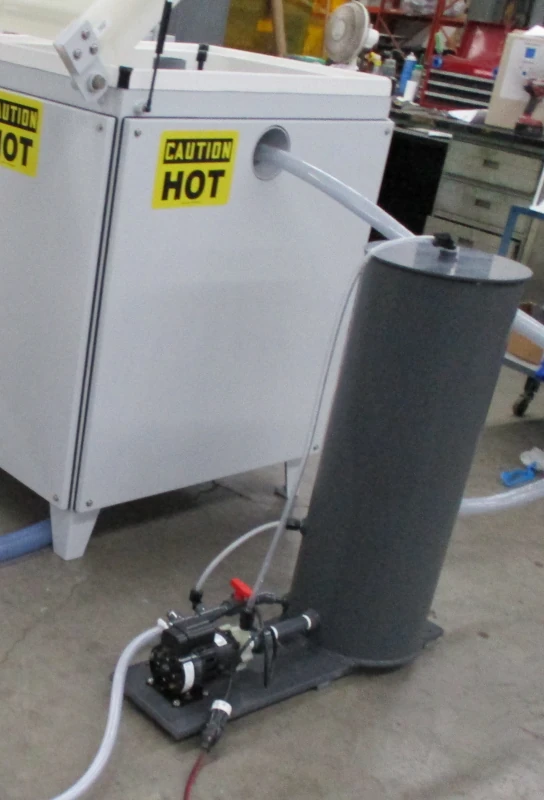

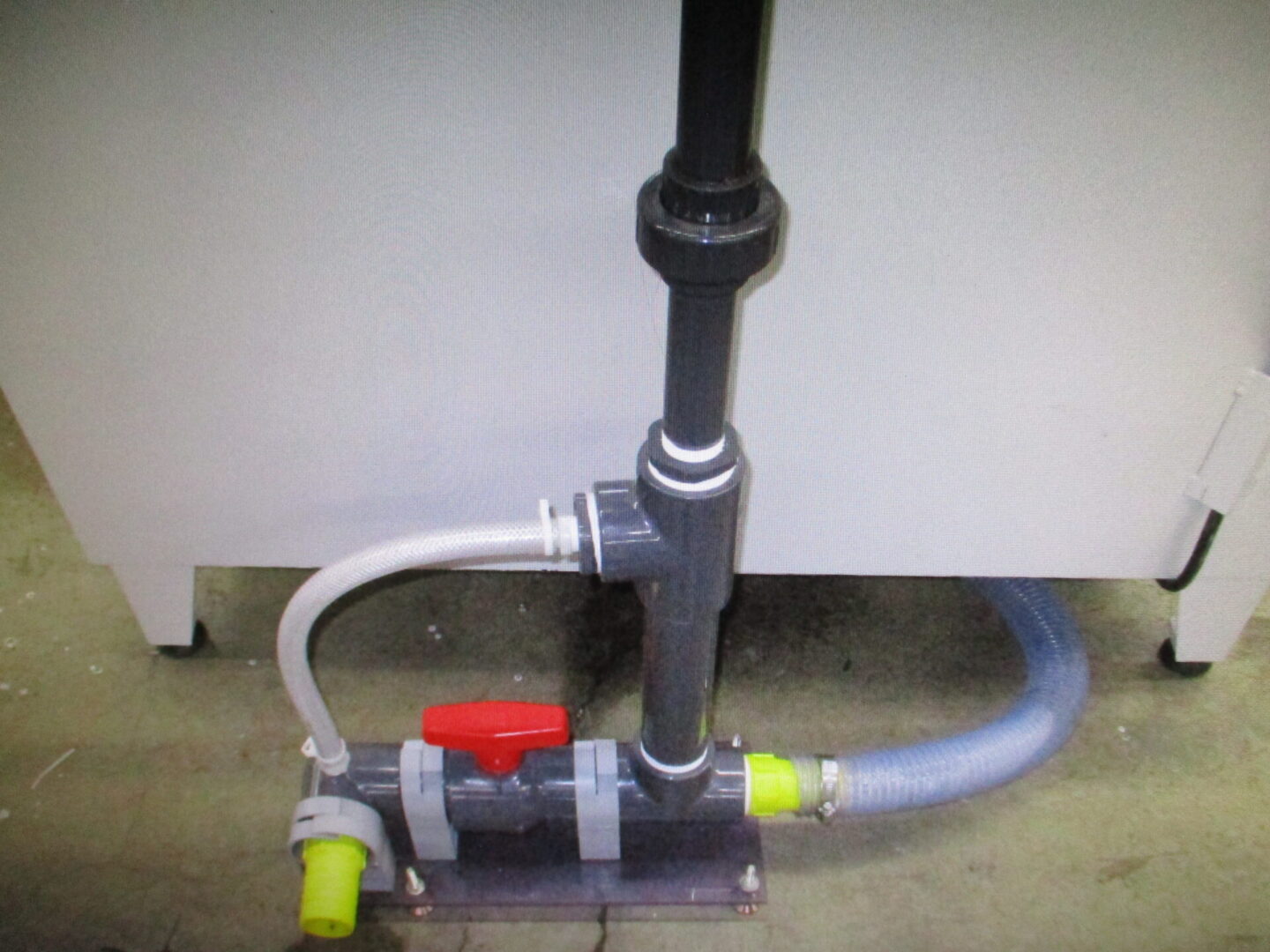

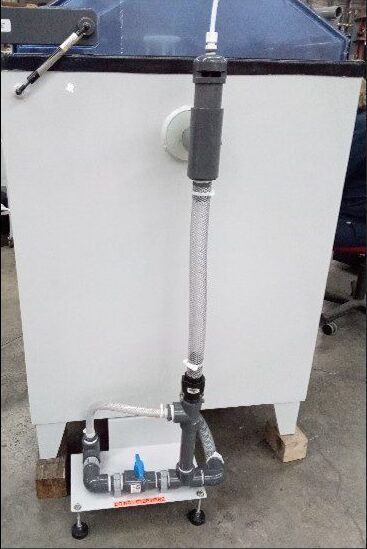

| Jet Exhaust / Recirculating Scrubber* | Reduces salt-fog emissions and maintains clean lab air using a venturi-type power exhaust system |
| SO₂ Test Package* | Adds controlled sulfur dioxide gas for ASTM G85 Annex 4 (Kesternich) moist SO₂ corrosion testing |
| High-Temperature Package* | Upgrades chamber materials and insulation for testing up to 50 °C with improved thermal durability |
| Humidity Pipe & Wet-Bottom Drain* | Maintains uniform moisture conditions for tests requiring sustained high humidity or condensate formation, rather than standard B117 salt-fog operation. |
| Automatic Shut-Down Timer* | Allows preset test durations and automatic power-off for unattended or overnight operation |
| Digital Controls & Data Logging* | Provides automated controls and traceable test records for compliance documentation |

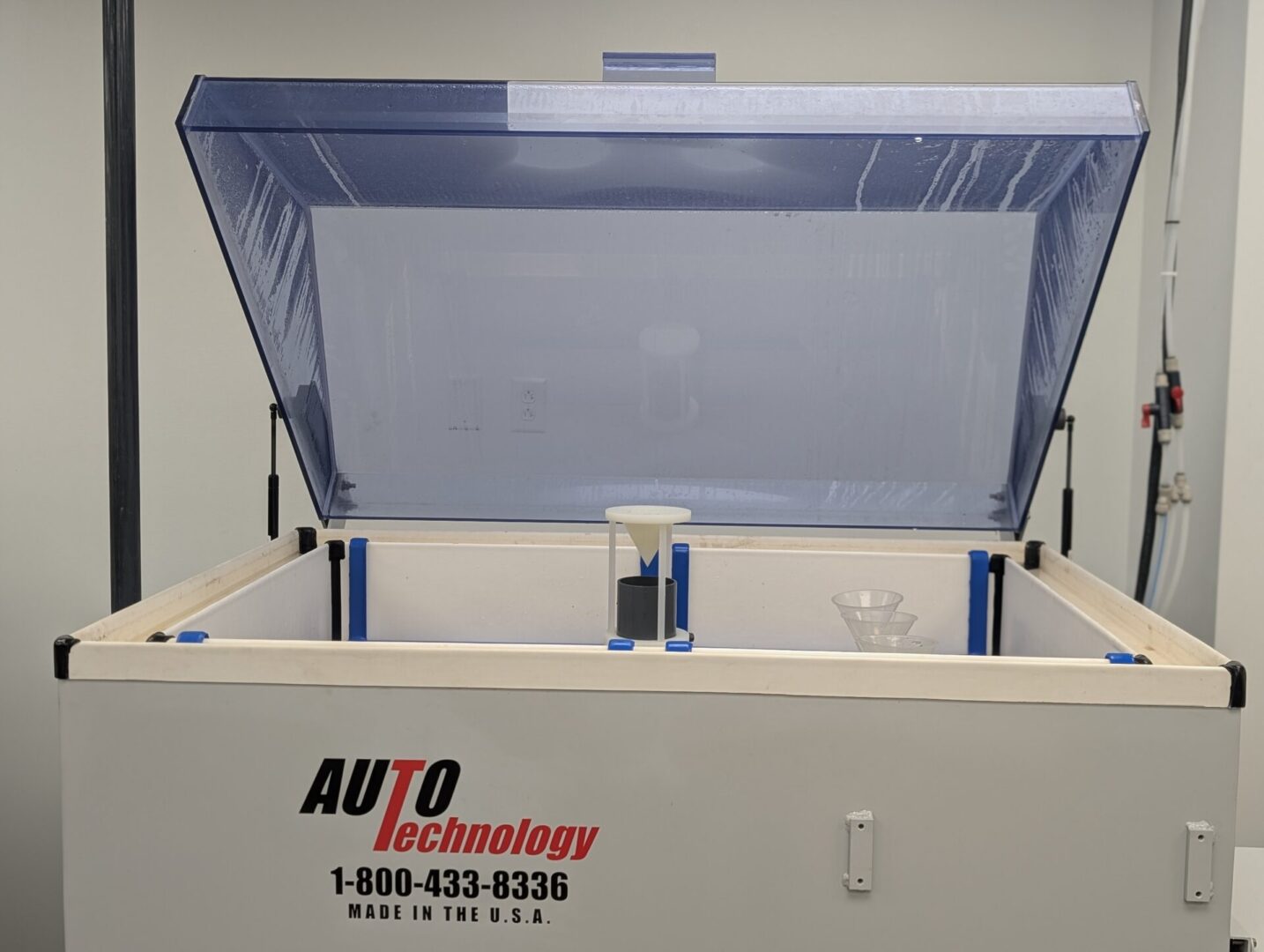

| Automatic Air-Lift Covers* | Improves operator safety and ergonomics with hands-free lid operation |

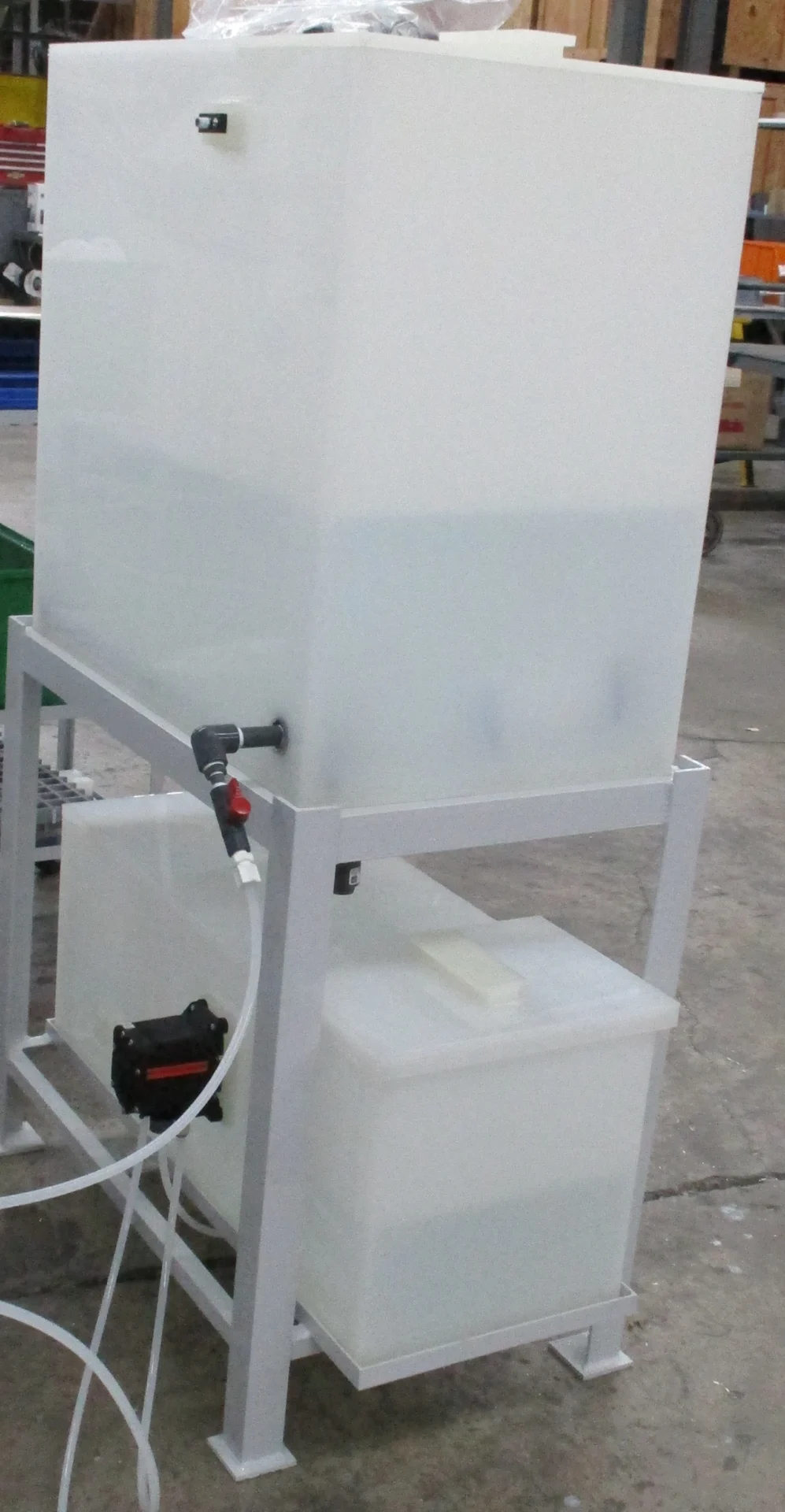

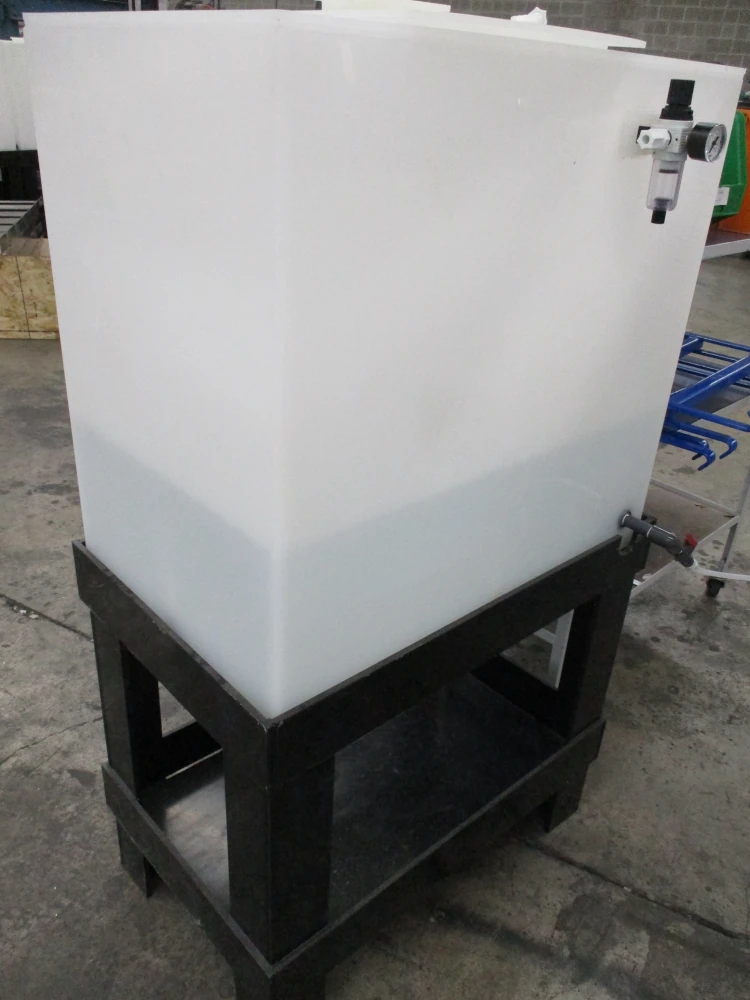

| Solution Mixing & Auto-Fill Tank | Ensures consistent salt concentration with filtered, air-sparged solution delivery |

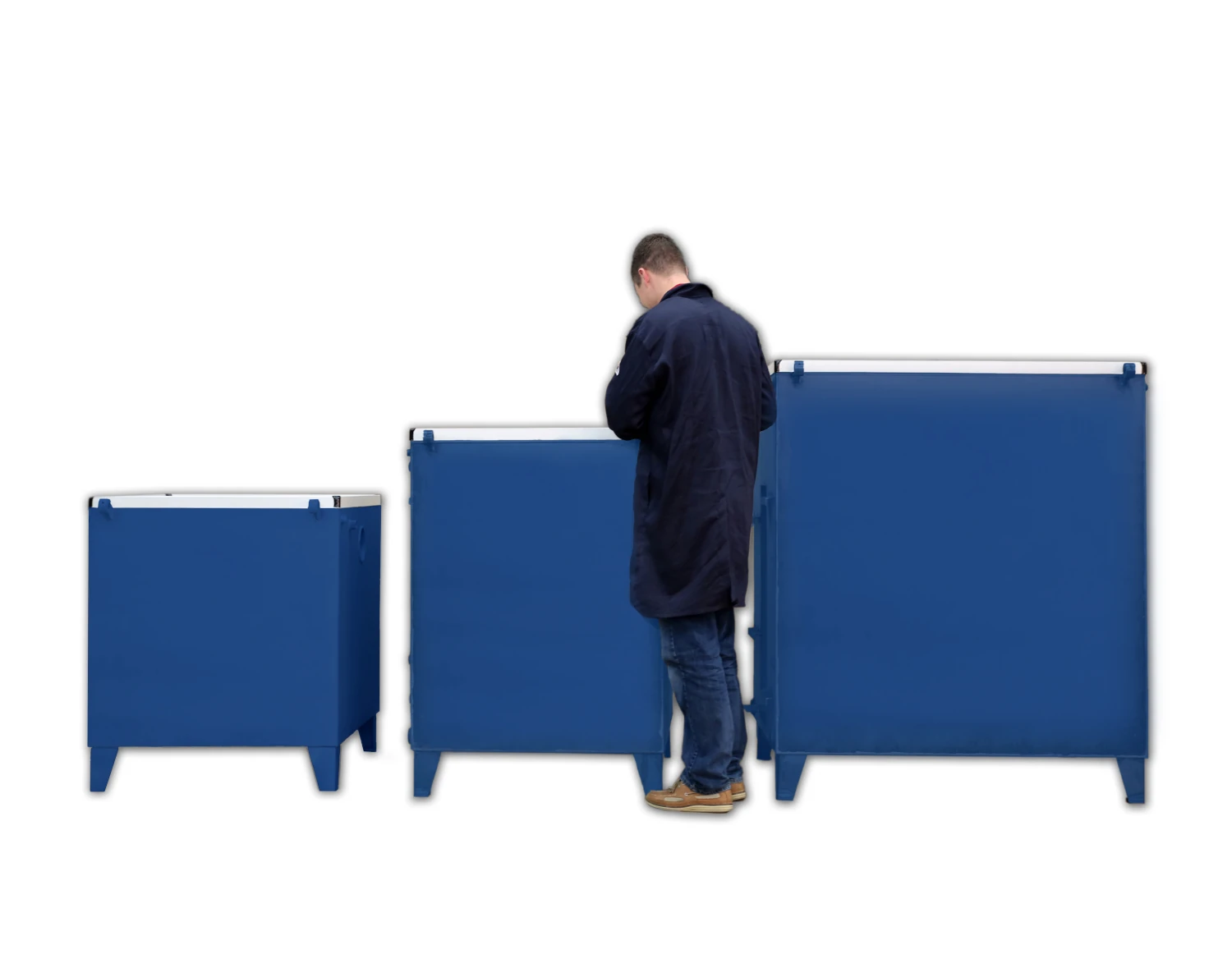

| Low- and High-Profile Configurations | Optimizes lab space and accessibility for different sample sizes and operator heights |
| Made in the USA | Built, calibrated, and serviced in Ohio for unmatched reliability and long-term support |
| A2LA Lab Proven Design | The same SFC design used daily in Auto Technology’s A2LA-accredited corrosion test lab |
*Optional customized feature

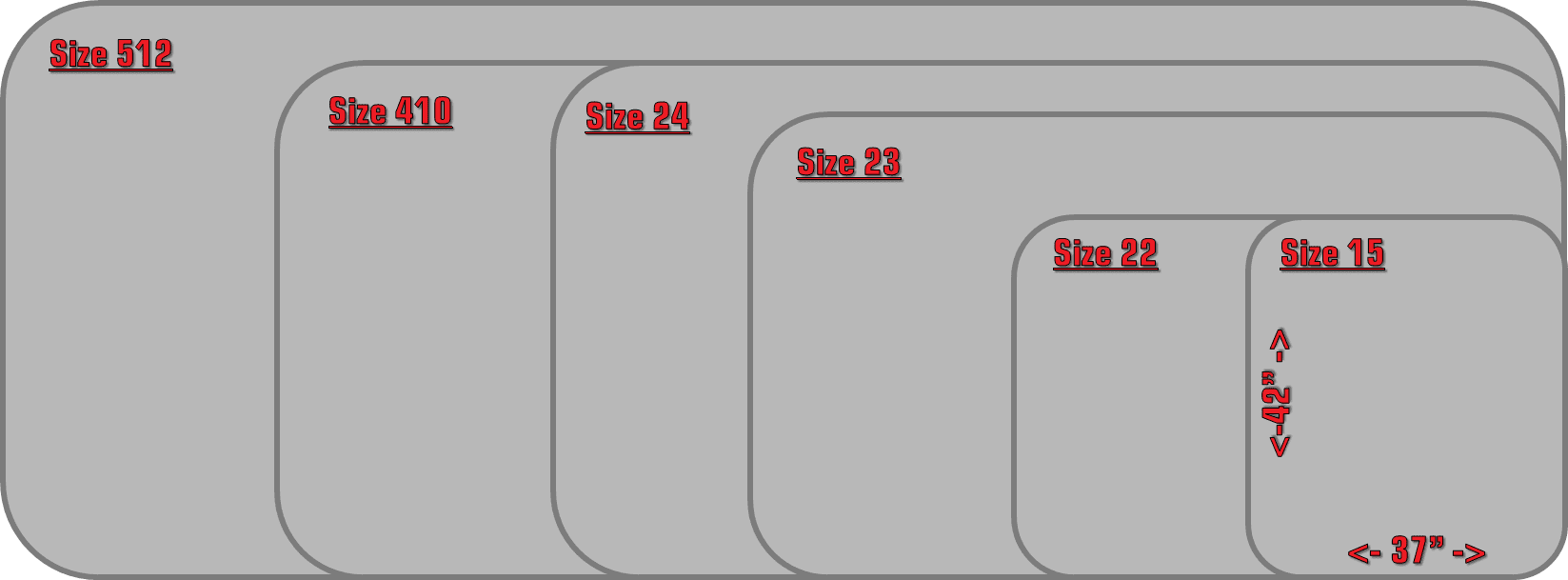

Sizing & Pricing
| Model | Internal Volume | Exposure Zone (W × D × H, in) |
Starting Price* |
|---|---|---|---|
| 15 | 19 ft³ / 539 | 22 × 30 × 38 | $21,100 |
| 21 | 20 ft³ / 706 | 29 × 30 × 38 | $22,972 |
| 22 | 30 ft³ / 1087 | 45 × 30 × 38 | $26,900 |
| 23 | 68 ft³ / 2402 | 72 × 42 × 38 | $35,800 |
| 24 | 100 ft³ / 3556 | 93 × 48 × 38 | $42,939 |
| 410 | 130 ft³ / 4566 | 120 × 48 × 38 | $59,798 |
| 512 | 194 ft³ / 5506 | 144 × 48 × 38 | $102,022 |
| Custom and walk-in configurations also available | |||
*Pricing is for qualified customers and may be subject to a trade-in requirement. Shipping and handling not included. Add-ons, customization, and optional packages will increase cost. Pricing and availability subject to change without notice.
