SALT FOG & HUMIDITY CHAMBERS | M SERIES VS C SERIES
Compare Auto Technology’s two basic salt fog, salt spray, and high humidity corrosion test chambers: the M Series Legacy Steel Salt Fog Chamber and the C Series Modern Fiberglass Salt Fog Chamber. Both platforms support traditional corrosion testing, salt solution exposure, DI water operation, ventilation planning, and humidity testing, but they differ in chamber construction, footprint, humidity capability, cost per cubic foot, controls, and future cyclic corrosion upgrade potential.
M Series Legacy Steel Salt Fog Chamber
Traditional ASTM B117 salt fog chamber.
View M Series Chamber
Purpose
This is THE legacy steel salt fog chamber. It is the classic water-jacketed chamber design established by ASTM B117-style salt fog practice and relied upon by manufacturers of metals, coatings, fasteners, vehicles, and industrial products for more than 75 years.
The water-jacketed design provides excellent temperature uniformity and stability throughout the exposure zone for traditional salt fog, salt spray, and water fog humidity testing.
This is a modern fiberglass salt fog and high humidity chamber with a lower cost per cubic foot, touchscreen controls, condensing humidity capability out of the box, water fog humidity capability, and limited automatic cyclic functionality.
It can be upgraded later to support future advanced cyclic corrosion testing requirements.
Space
The overall amount of space required is similar for comparably sized chambers and exposure zones.
The footprint is more flexible because the 55-gallon solution tank is detached from the chamber and can be positioned independently.
The ventilation connection is located on the side. Multiple chamber sizes are available.
The footprint is generally more fixed because the 60-gallon solution tank is attached to the chamber.
The ventilation connection is located on the rear. Two standard sizes are available.
City Water
The water jacket used to heat the chamber requires DI water and rust inhibitor.
City water is not required but may be used to fill the wet bottom.
DI Water
Both systems require ASTM D1193 Type IV water for fog generation and as a major component of the salt solution.
In addition to normal operation, DI water is generally used for the water trough lid seal.
DI water is used for normal operation.
Salt Solution
Both systems require salt solution when running salt fog tests, salt spray tests, or related corrosion test practices. Salt solution can be purchased premixed from Auto Technology Company.
Salt solution can be mixed directly in the external solution tank.
Salt solution can be mixed directly in the attached solution tank when equipped with the optional mixing tank package.
Ventilation
Both systems require a method for handling humid, salt-laden exhaust air.
The standard installation uses a ventilation line routed to the exterior of the building. A powered vent can be added for long ventilation runs.
If exterior ventilation is unavailable, scrubber options are available, including basic scrubbers, recirculating scrubbers, and advanced computer-controlled recirculating scrubbers.
The standard installation uses a ventilation line routed to the exterior of the building. A powered vent can be added for long ventilation runs.
If exterior ventilation is unavailable, scrubber options are available, including basic scrubbers, recirculating scrubbers, and advanced computer-controlled recirculating scrubbers.
Drainage
Both systems generate water-based condensate and byproducts that must be managed.
Under normal operating conditions, the chamber continuously drains a small amount of liquid while running and requires access to a suitable floor drain.
Custom drainage solutions are available for facilities with drainage limitations.
Under normal operating conditions, the chamber continuously drains a small amount of liquid while running and requires access to a suitable floor drain.
Custom drainage solutions are available for facilities with drainage limitations.
Fiberglass vs Steel Salt Fog Chambers
The M Series uses the traditional water-jacketed steel chamber design that many established salt fog laboratories already know and trust for ASTM B117-style testing. For labs accustomed to this legacy design, the M Series often feels familiar because the chamber layout, water jacket, external solution tank, and operating approach match what they have used for years.
The C Series is a modern fiberglass salt fog and humidity chamber. It is often a better fit for laboratories that are not tied to the legacy steel chamber format and want touchscreen controls, condensing humidity capability out of the box, water fog humidity capability, and a lower cost per cubic foot.
Common Salt Fog and Humidity Chamber Applications
Neutral salt fog exposure for metals, coatings, fasteners, and assemblies.
Salt spray and salt fog corrosion testing for international qualification programs.
Humidity exposure for products, finishes, coatings, and materials.
Condensing humidity exposure available out of the box with the C Series.
Water fog humidity capability for laboratories that need basic high humidity exposure.
Corrosion testing for paints, platings, conversion coatings, and protective finishes.
Salt fog and humidity exposure for screws, bolts, clips, brackets, and related hardware.
Evaluation of painted, plated, and coated substrates exposed to corrosive environments.
Salt fog and humidity testing for components, materials, coatings, and assemblies.
Common Standards and Test Methods
These chamber platforms are commonly considered by laboratories running salt fog, salt spray, and high humidity exposure work. Final chamber selection should always be based on the exact standard, revision level, exposure requirements, humidity method, chamber size, and facility limitations.
Traditional neutral salt fog testing.
International salt spray and salt fog testing.
Water resistance testing in high humidity.
Water fog exposure for coatings and related materials.
Controlled condensation exposure for coatings.
Modified salt spray and cyclic corrosion practices where applicable.
Which Chamber Fits Your Testing Requirements?

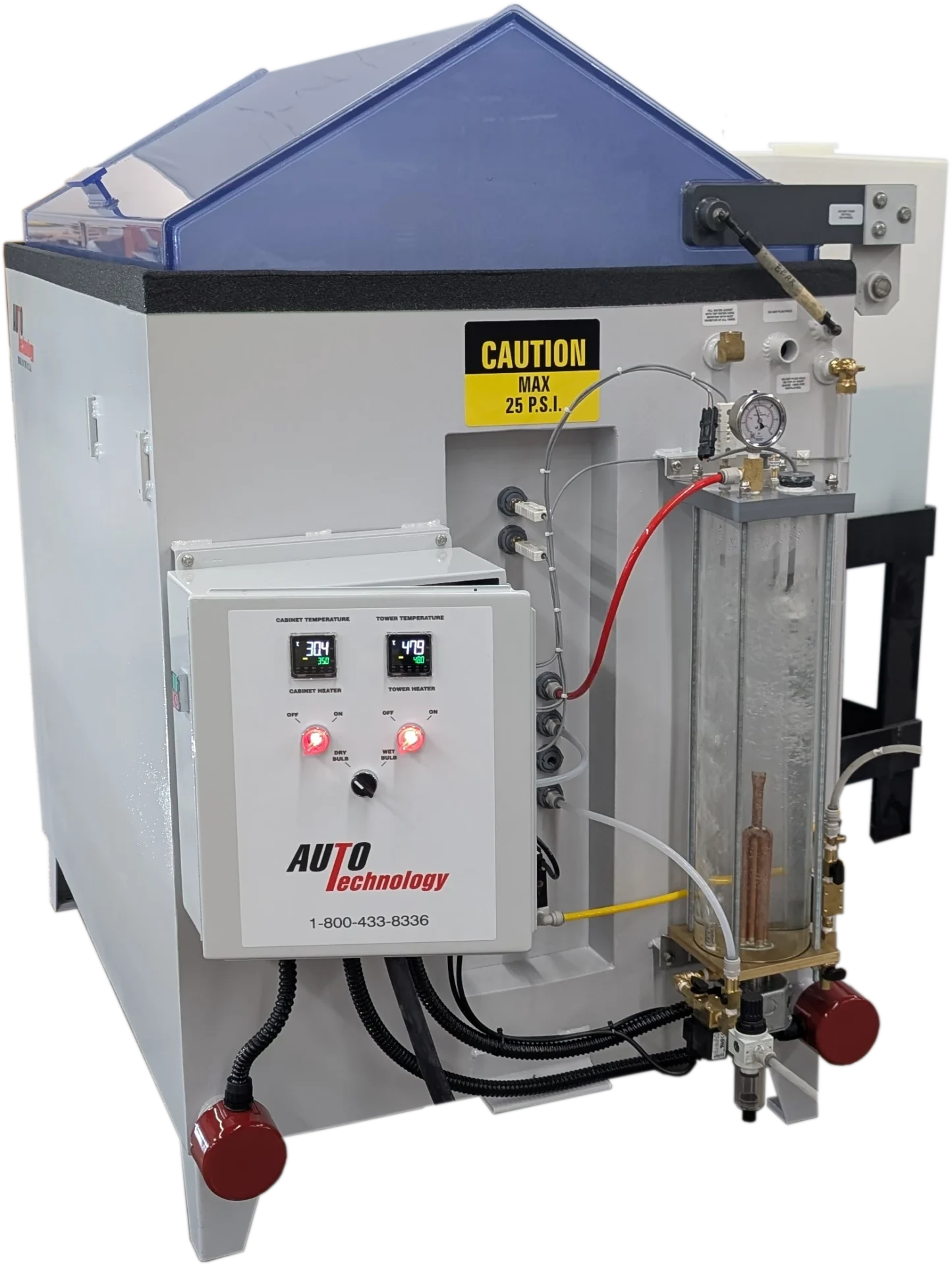

M Series Legacy Steel Chamber
- Traditional ASTM B117-style salt fog chamber architecture
- Water-jacketed steel chamber design
- Excellent exposure-zone temperature stability
- Detached 55-gallon solution tank
- Multiple chamber sizes available
- Strong fit for traditional salt fog and water fog humidity testing

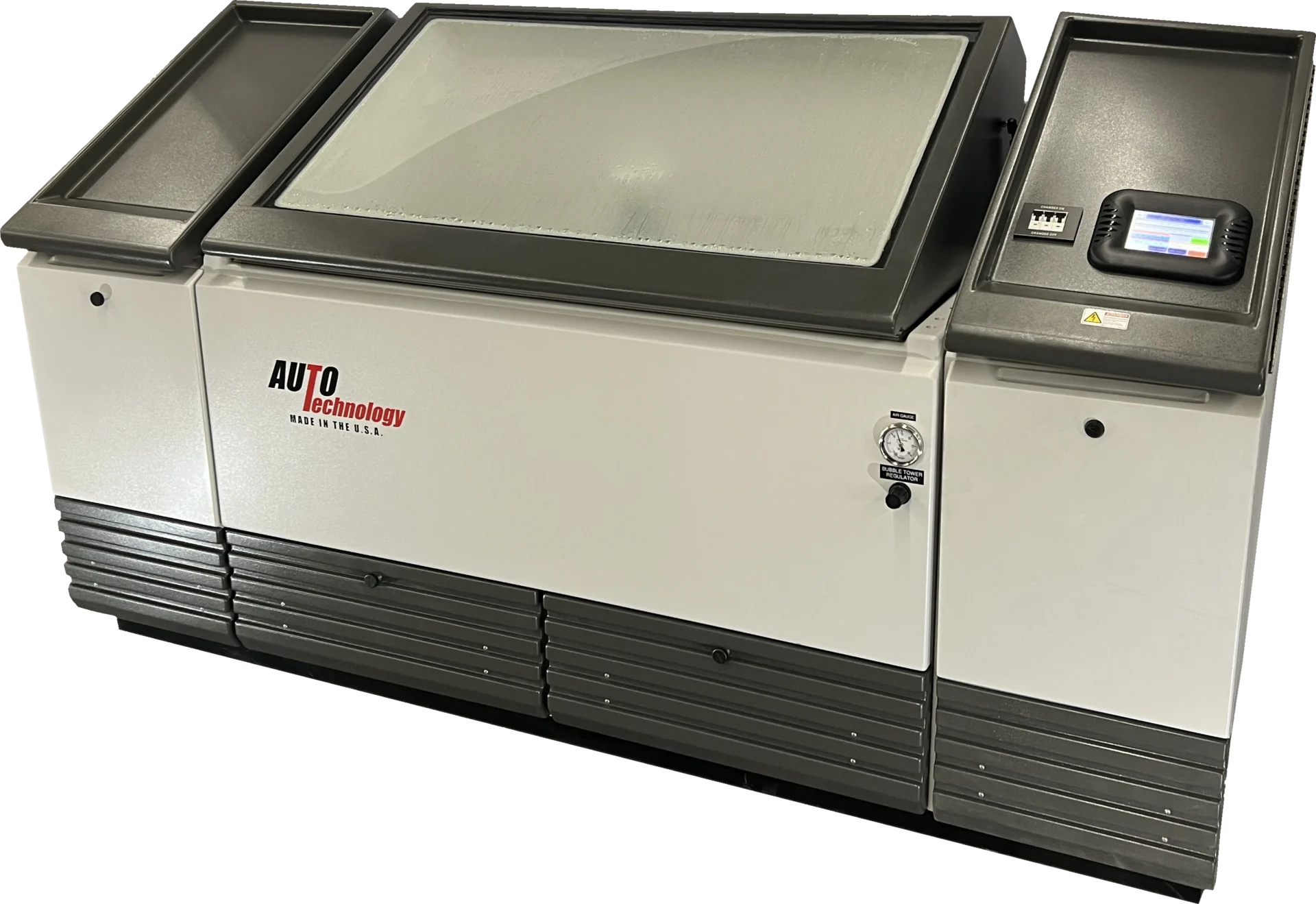

C Series Modern Fiberglass Chamber
- Modern fiberglass salt fog chamber construction
- Lower cost per cubic foot
- Touchscreen controls
- Condensing humidity out of the box
- Water fog humidity capability
- Upgrade path for future cyclic corrosion testing
Salt Fog and Humidity Chamber FAQ
Which chamber is better for ASTM B117 salt fog testing?
The M Series Salt Fog Chamber is the classic water-jacketed chamber design associated with ASTM B117-style salt fog testing. The C Series Fiberglass Salt Fog Chamber can also run basic salt fog testing, but is often selected when a lab wants fiberglass construction, touchscreen controls, condensing humidity, and lower cost per cubic foot.
Which chamber is better for humidity testing?
Both chamber platforms can run water fog humidity. The C Series can also run condensing humidity testing out of the box, making it the stronger choice when high humidity exposure is a major part of the testing program.
Can the C Series run condensing humidity?
Yes. The C Series can run condensing humidity testing out of the box and can also run water fog humidity. That makes it a strong option for laboratories comparing fiberglass salt fog chambers and high humidity chambers.
Can the M Series run humidity testing?
Yes. The M Series can run water fog humidity testing. It is primarily chosen as a traditional water-jacketed salt fog chamber with basic humidity exposure capability.
Which chamber has the lower cost per cubic foot?
The C Series is the lower-cost-per-cubic-foot platform. It is designed as a modern fiberglass salt fog and humidity chamber for laboratories that want touchscreen controls, humidity capability, and future upgrade potential.
Do both chambers require DI water?
Yes. Both systems require ASTM D1193 Type IV water for fog generation and as a major component of the salt solution.
Can Auto Technology provide premixed salt solutions?
Yes. Auto Technology supplies premixed corrosion test solutions for ASTM B117 / ISO 9227, ASTM G85 Annex A2, GM 14872, Ford CETP 00.00-L-467, SAE J2334, mixed chloride testing, and other corrosion methods.
