AUTO TECHNOLOGY SIZE 40 CORROSION CHAMBER

Red Gradient Line Divider

View Size 40 chamber drawings showing exterior dimensions, exposure width, exposure height, and exposure depth.

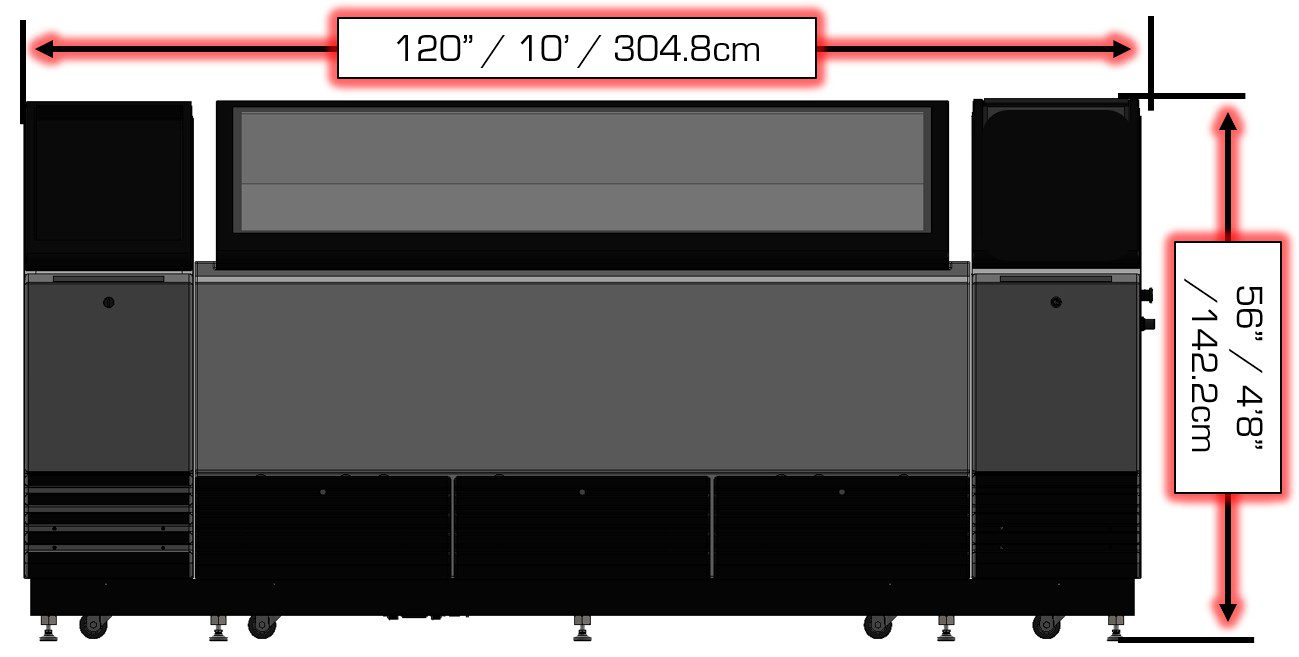

Front elevation schematic of an Auto Technology size 40 industrial corrosion testing chamber showing total exterior width and height dimensions for laboratory footprint planning.
Front elevation showing the 120-inch overall width and 56-inch overall height.

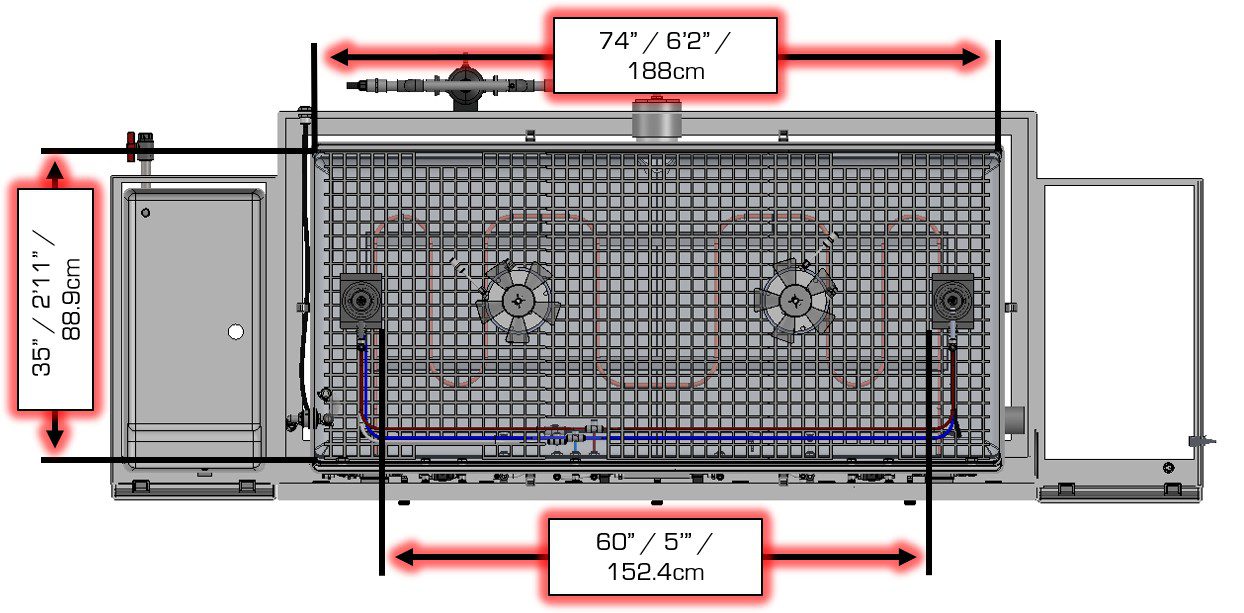

Overhead technical schematic of an Auto Technology size 40 corrosion chamber highlighting internal exposure width dimensions with the dual circulation fans and spray assembly configuration exclusive to A Series and X Series models.
Exposure width layout. Spray assembly and circulation fans shown are A Series and X Series features only.

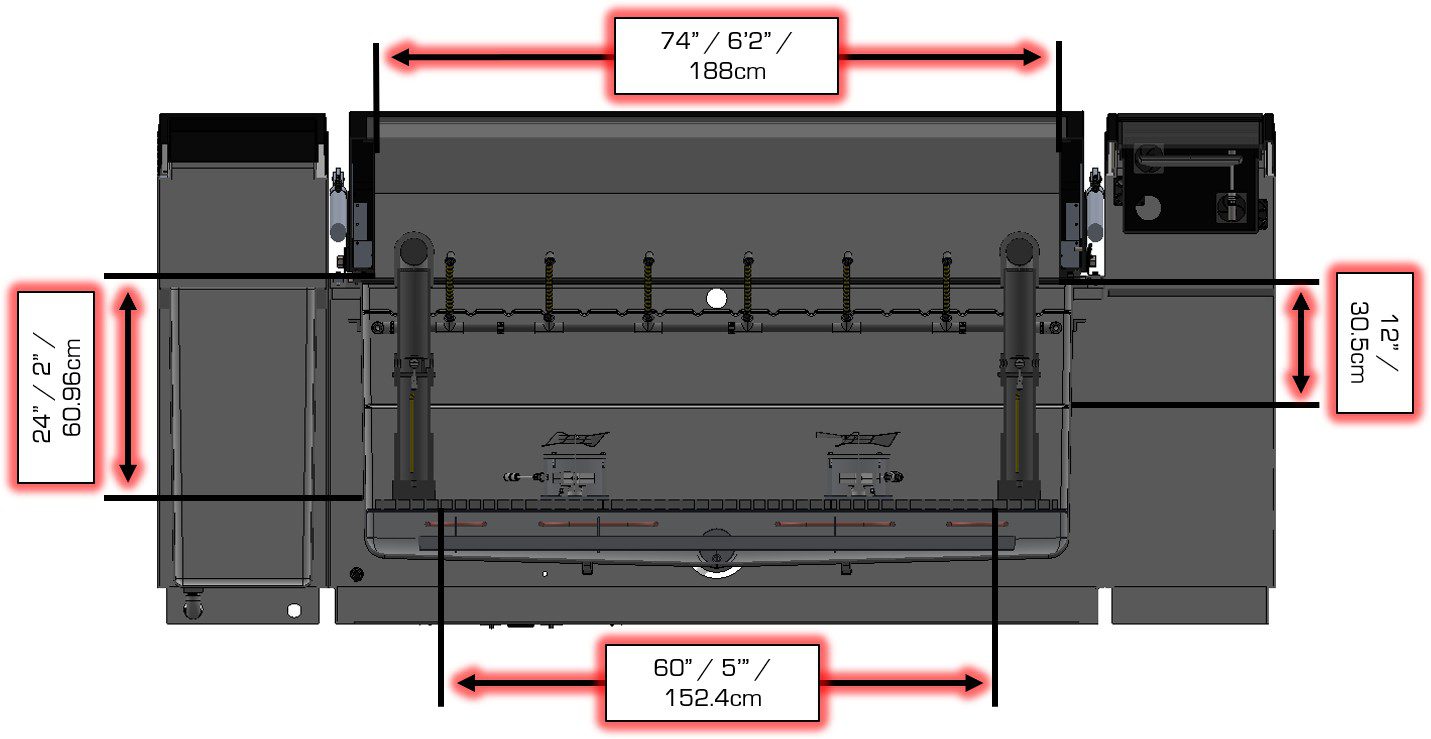

Technical diagram of an Auto Technology size 40 corrosion chamber interior showing the advanced spray assembly and fans exclusively available on A Series and X Series models, with exposure height dimensions highlighting 24-inch and 12-inch clearance zones.
Exposure height layout. Spray assembly and circulation fans shown are A Series and X Series features only.

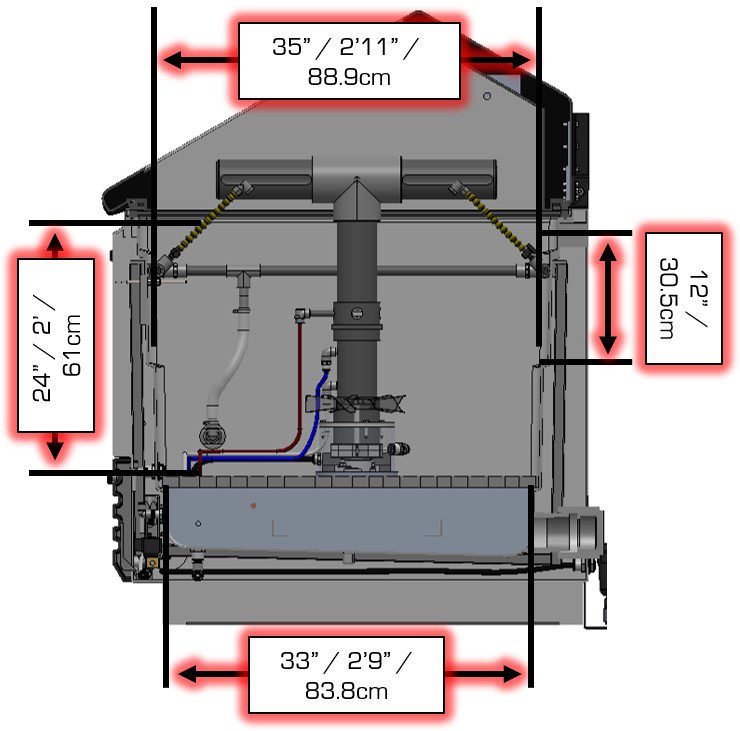

Side-profile cross-section diagram of an Auto Technology size 40 corrosion chamber detailing the internal exposure depth measurements, featuring the specialized spray assembly and fan mechanisms exclusive to A Series and X Series configurations.
Exposure depth layout. Spray assembly and circulation fans shown are A Series and X Series features only.
