AUTO TECHNOLOGY SIZE 110 CORROSION CHAMBER

Thin horizontal red-to-gray gradient bar

View Size 110 chamber drawings showing the exposure floor, chamber clearance, side profile, front dimensions, and internal cross sections.

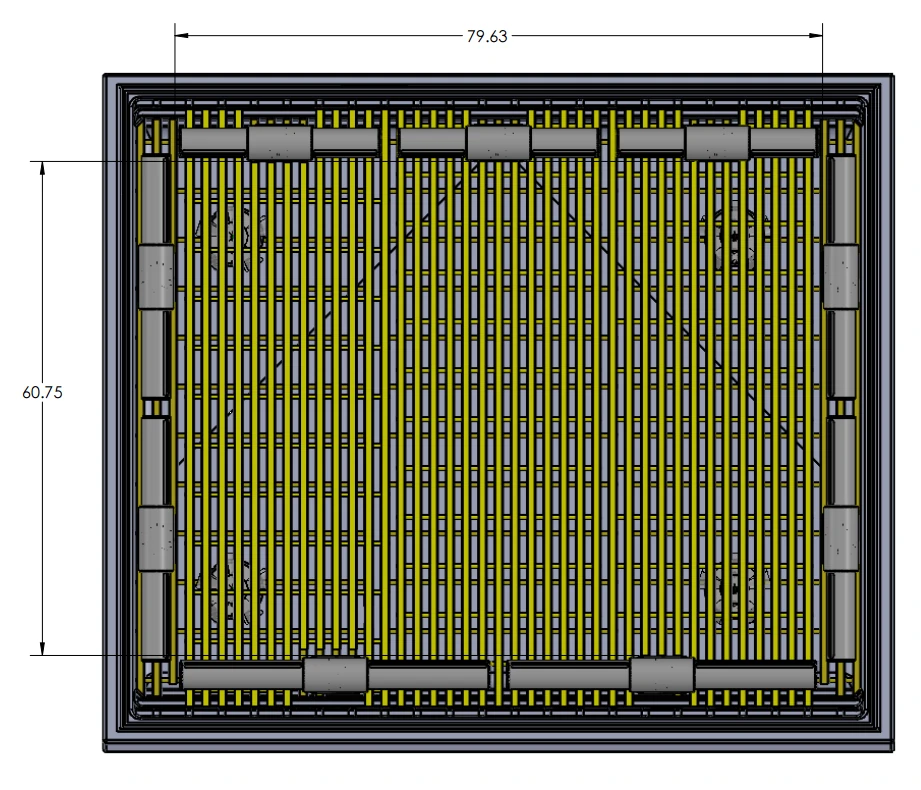

Top-down cross-sectional schematic view of the Auto Technology Size 110 cyclic corrosion chamber exposure floor, measuring 79.63 inches in width by 60.75 inches in depth.
Overhead exposure floor grid showing the 79.63-inch by 60.75-inch loading area.

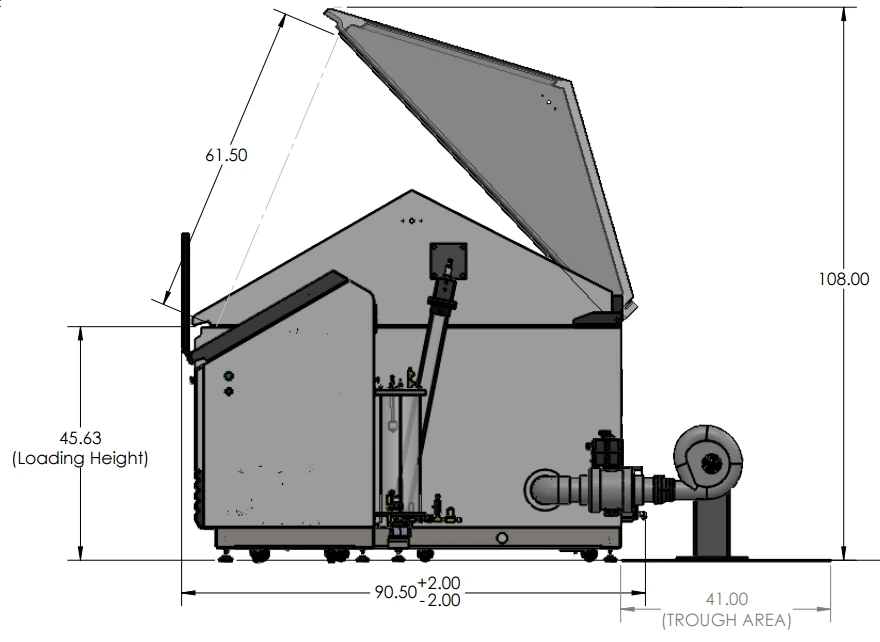

Side view technical profile of the Auto Technology Size 110 cyclic corrosion chamber with the lid fully open, showing an ergonomic loading height of 45.63 inches and a maximum ceiling clearance height of 108.00 inches.
Side profile showing the 45.63-inch loading height and 108.00-inch open-lid clearance.

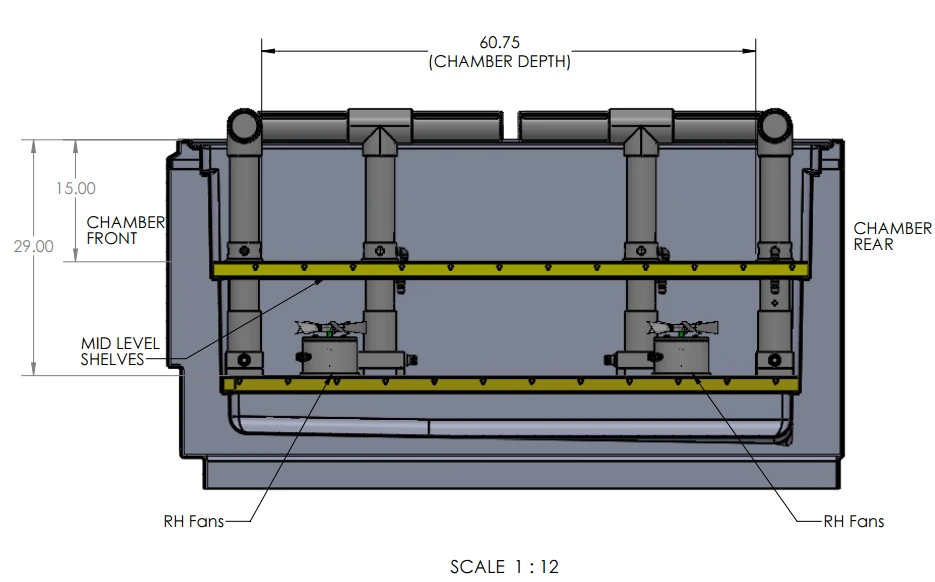

Side cross-sectional engineering schematic of the Auto Technology Size 110 interior exposure zone, showing a 60.75-inch chamber depth, mid-level sample shelving, and built-in fans.
Side cross section showing chamber depth, shelving position, and internal fans.

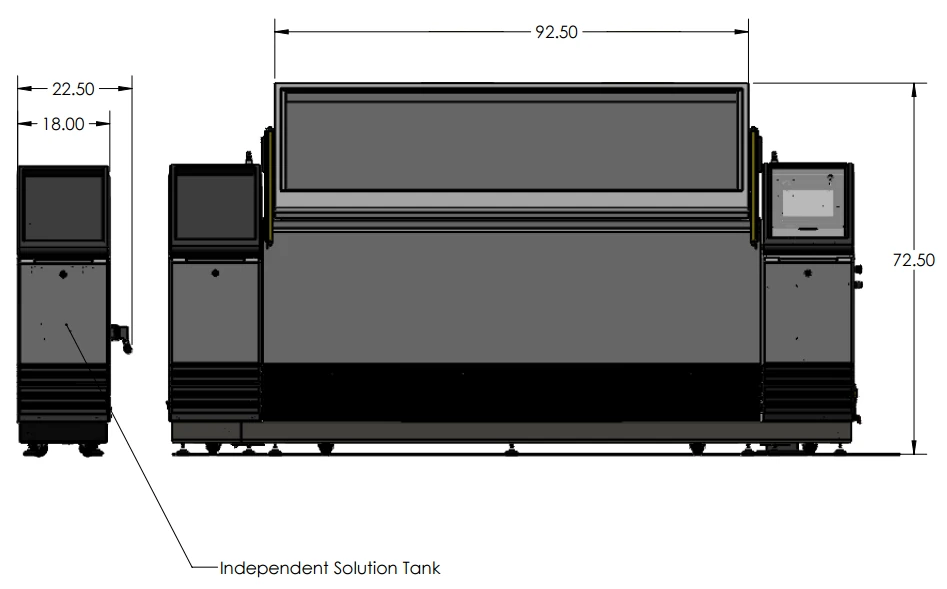

Front elevation schematic drawing of the Auto Technology Size 110 cyclic corrosion chamber showing an exposure zone width of 92.50 inches, overall height of 72.50 inches, and an independent solution tank.
Front elevation showing the 92.50-inch lid width and independent solution tank.

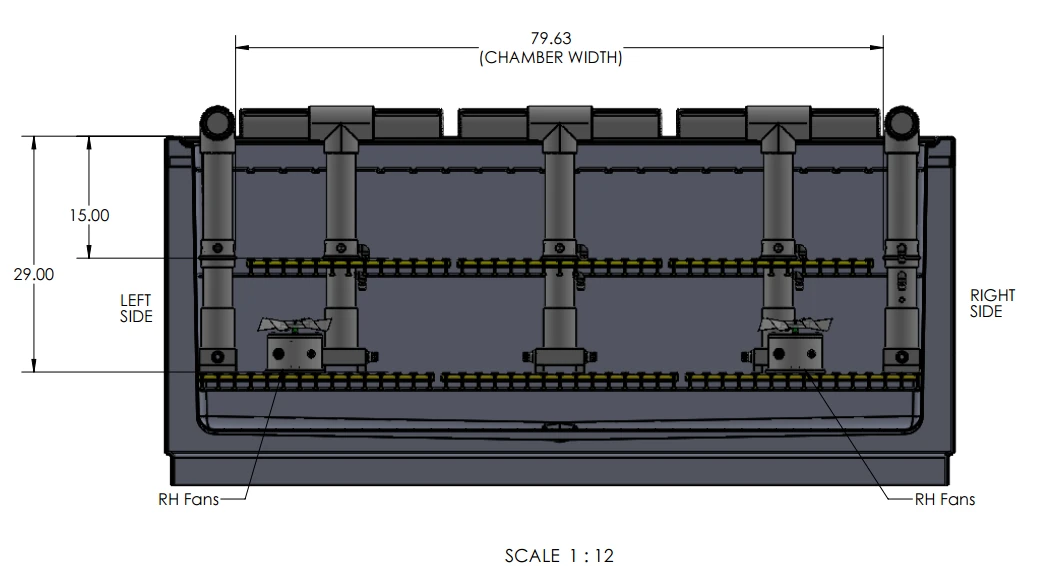

Front cross-sectional technical drawing of the Auto Technology Size 110 chamber interior, detailing the 79.63-inch internal chamber width, specimen shelves, and plumbing lines.
Front cross section showing the 79.63-inch internal working width, shelving, and plumbing lines.
