AUTO TECHNOLOGY SIZE 20 CORROSION CHAMBER

Red Gradient Line Divider

View Size 20 chamber drawings showing exterior dimensions, exposure width, exposure height, and exposure depth.

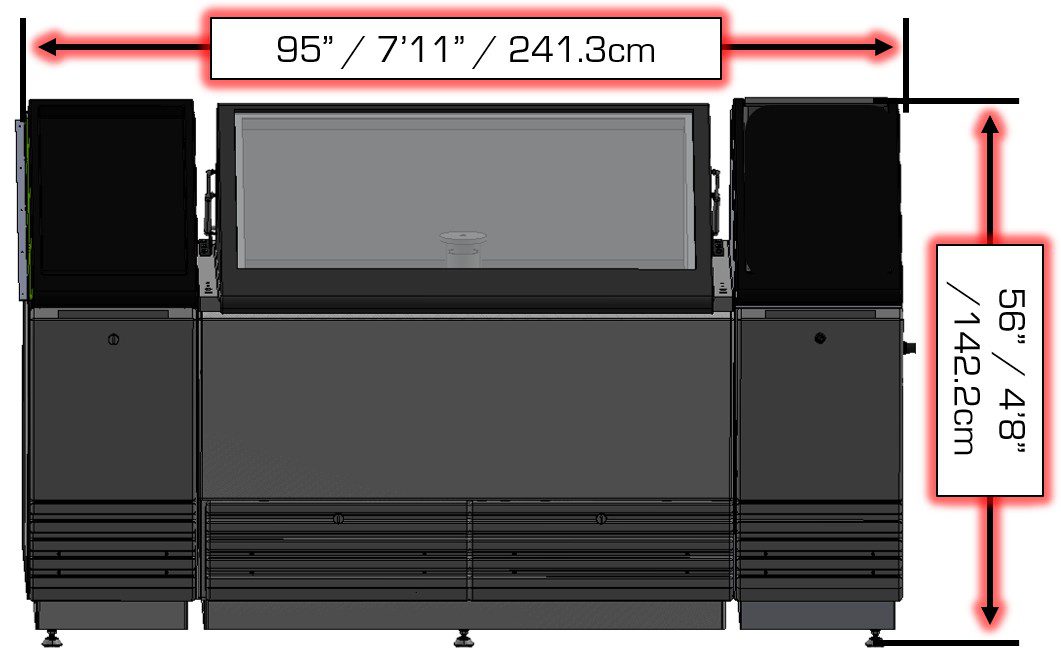

Front elevation diagram of an Auto Technology size 20 industrial corrosion testing chamber showing total exterior width and height dimensions for laboratory footprint and space planning.
Front elevation showing the 95-inch overall width and 56-inch overall height.

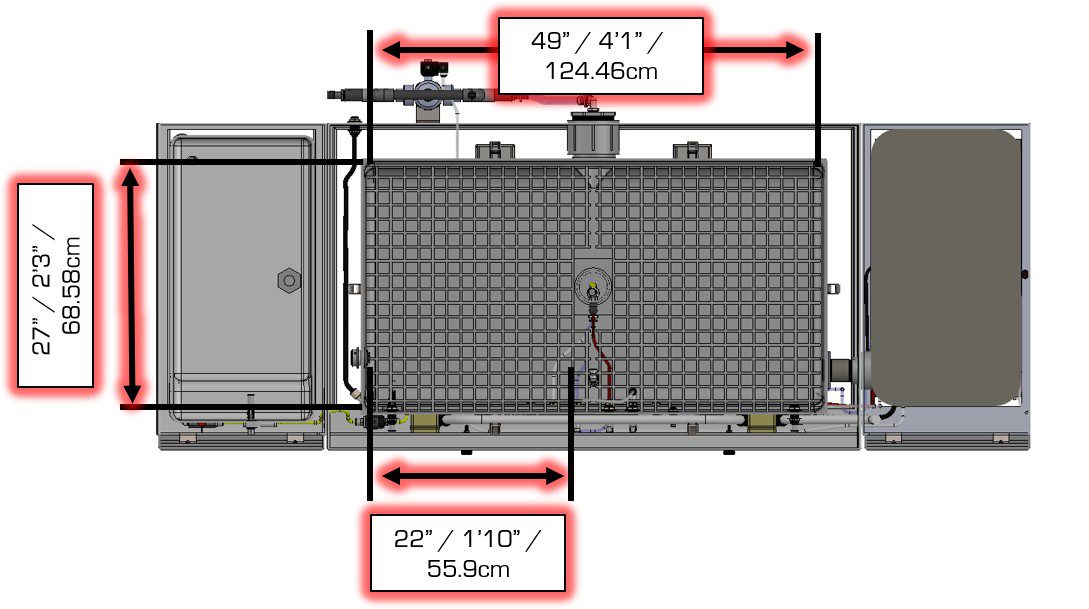

Top-down technical schematic of an Auto Technology size 20 corrosion chamber highlighting internal exposure width dimensions and grid spacing clearances for sample placement.
Exposure zone showing the 49-inch width and 22-inch width on either side of the center fog tower.

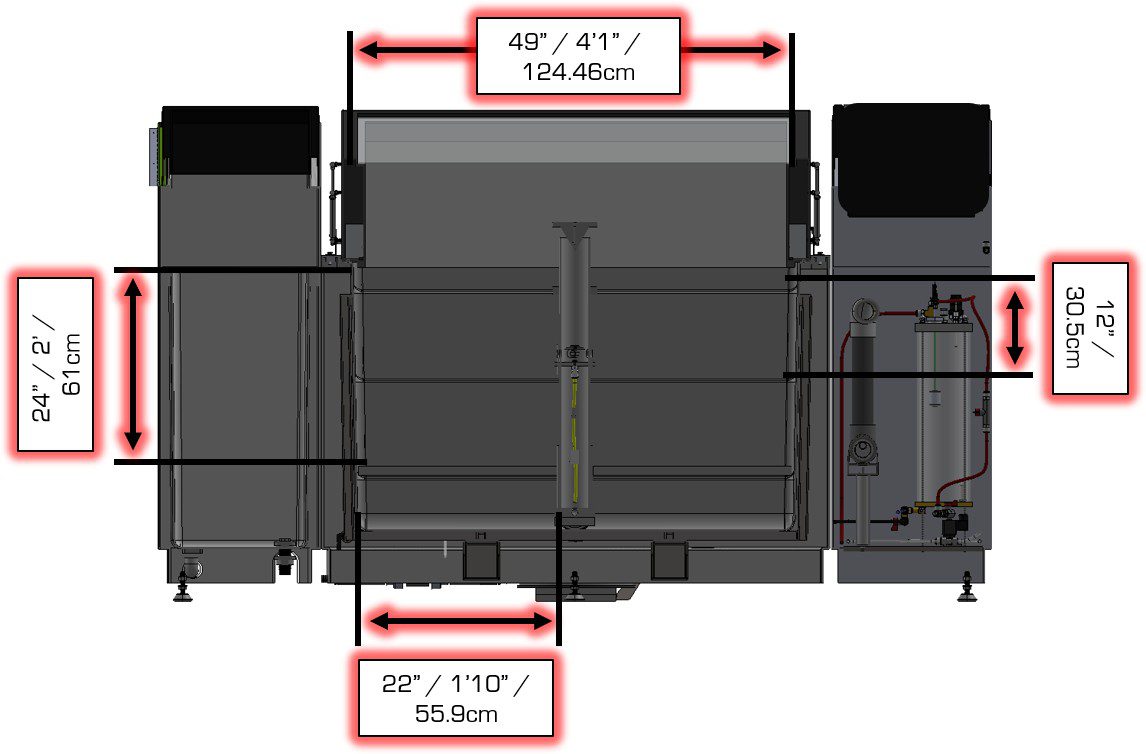

Technical diagram showing the interior exposure height measurements of an Auto Technology size 20 corrosion chamber, detailing the 24-inch and 12-inch clear vertical testing zones.
Internal exposure height showing the 24-inch and 12-inch vertical testing clearances.

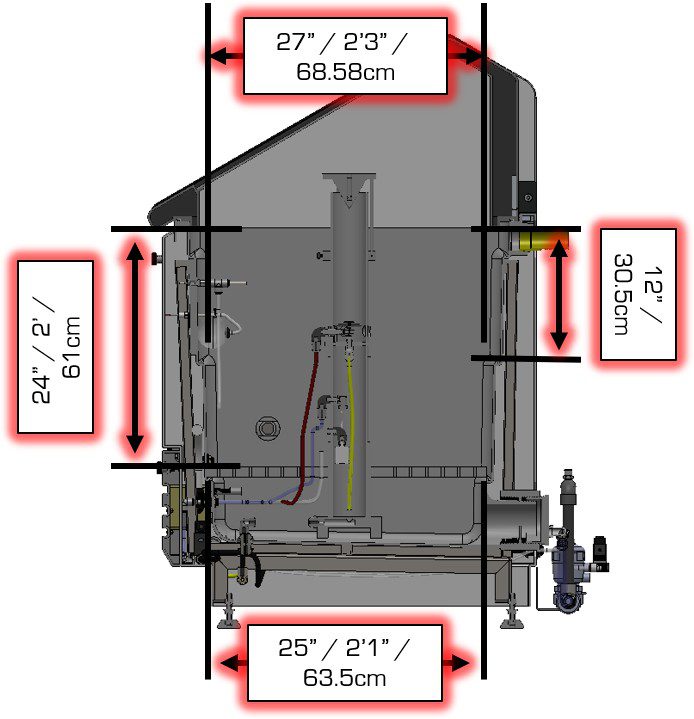

Side-view cross-section diagram of an Auto Technology size 20 corrosion chamber detailing the internal exposure depth measurements of 27 inches and 25 inches for specimen layout planning.
Side-profile exposure depth showing the 27-inch and 25-inch internal clearances.
